InfraFloor® Mat

Ideal for ceramic or stone tile floors. InfraFloor’s dual-wire, pre-spaced mat system saves time laying and spacing floor heating elements out across the floor and easily adjusts on–site to fit the floor. InfraFloor’s dual-wire floor warming cable is specially designed to cancel Electro-Magnetic Field (EMF). Lead wires come from one end of the mat, so you don’t need to bring another end of the heating mat back to the starting point.

• For ceramic tile, marble, porcelain, stone.
• Pre-spaced cable provides maximum convenience.
• Power supply: 120V and 240V versions.
• Max power: 12W/sq. ft.
• Thin cable diameter: < 1/8" - 1/6".
• Twin conductor, EMF cancelling heating cable.
• Self-adhesive tape for attaching to floor.
• Quadruple, robust, cable protection.
• Single 10 ft, 14AWG connection leads.
• Complies with UL standards and the NEC.
• 10 year warranty!

InfraFloor® Cable

• For ceramic tile, marble, porcelain, stone.
• Power supply: 120V and 240V versions.
• Max power: 15W/sq. ft. (with 2" spacing)
• Thin cable diameter: < 1/8" - 1/6".
• Twin conductor, EMF cancelling heating cable.
• Quadruple, robust, cable protection.
• Single 10 ft, 14AWG connection leads.
• Complies with UL standards and the NEC.
• 10 year warranty!

WarmFilm

• For wood and laminate floors.
• Power supply: 120V and 240V versions.
• Max Power Load: 11 W/sq. ft.
• Available in 2 widths: 1.5 ft and 3.0 ft
• Lengths up to 30ft at 120V and up to 60ft at 240V.
• 15ft, 14AWG connection leads from one side only!
• EMC Safe (Electro-magnetic compatibility).
• Complies with UL standards and the NEC.
• 10 year warranty!

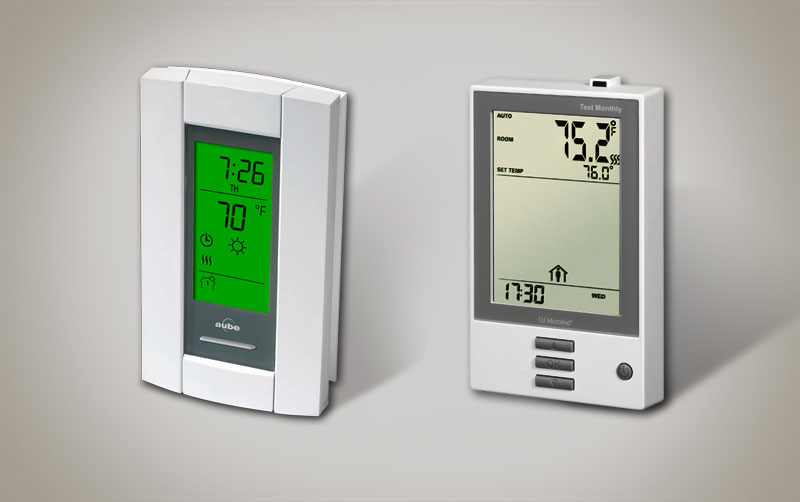

Floor Heating Thermostats

InfraFloor offers the widest selection of radiant floor heating thermostats from largest world manufacturers with floor sensors and both floor and room (air) sensors. Electric floor heating thermostats almost always include a floor sensor especially in supplemental heating applications to directly control floor temperature separate from the room (air) temperature and to prevent the in-floor heating system from conflicting with the central heating system.

Even in sole source heating applications, where a room (air) thermostat is desired to control the floor temperature, it is a good idea to have a floor sensor for temperature limiting purposes to insure compliance with floor warranties that may specify maximum underfloor heating temperatures for certain types of wood and laminate floors.

Choose from several styles, backlighting options
and programmability features.

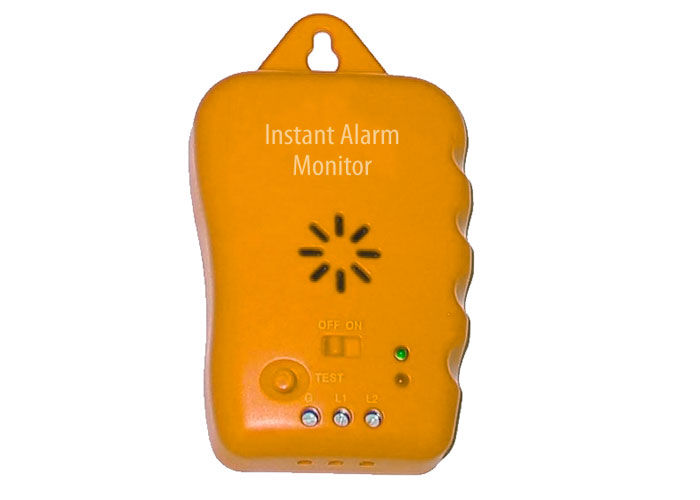

Floor Heating Monitor

Radiant floor heating mat monitor will sound an alarm during installation if the floor warming mat is damaged resulting in a short or open circuit.*

Connect monitor to your electric floor heat mats throughout the installation. Operates on a standard 9 Volt battery (included). Detailed operating instructions are provided. Monitor is a "must have" for do-it-yourselfers and anyone who wants peace of mind during installation.

*Floor Heating Monitor may not detect nicks in the heating wire that could
cause GFCI tripping if the nick does not result in an open or short circuit.

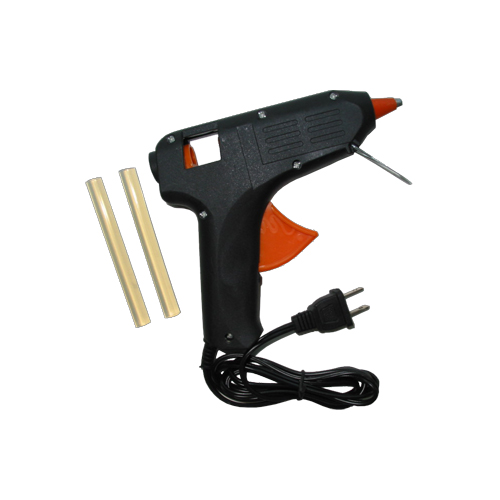

InfraGun™ Glue Gun

• Streamlines fastening InfraFloor mats and InfraFloor cables to the subfloor
• Avoids mats and cable loops from lifting when using self-leveling cement
• Silicone protected nozzle - prevents burns
• Heavy duty construction
• 40 Watt fast pre-heat
• 110/120-Volt
• UL Listed
• Includes (2) 4.0”x 7/16” glue sticks
