Honeywell (AUBE)
Radiant Underfloor Heating Thermostats
Programmable Thermostat - AUBE TH115 Series
- 120V or 240V TH115 Series
- 15A resistive
- Max. load 120V = 1,800 Watts; 240V = 3,600 Watts
- 4 time periods/day, 2 temperature settings
- Built-in Class A 5mA GFCI with GFCI test light
- Selectable 12-hour(°F) or 24-hour(°C) format
- Three temperature control modes - ambient, ambient with floor limit and floor
- ON/Standby switch enables thermostat shutdown at end of heating season for added security
- Temporary bypass enables temperature override without changing programming
- Advanced temperature control ensures total floor heat comfort by minimizing temperature variations
- Battery-free backup means no re-programming your schedule after a power outage
- Epoxy-soundproofed relay: Quiet operation
- 3 year manufacturers warranty
- Dimension: 4.9x2.8x0.9 inches (124x70x23mm)
- Made in China
Temperature Control
- Temperature range: +40/+104°F (+5/+40°C) in floor setpoint range (F mode)
- Accuracy: ±1.0°F/0.5°C
- 7 days, 4 time periods/day; 2 settings
- Pre-programmed to suggested settings - or reset to your personal settings
- F° or C° scale.
Easy Connections
- Fits single gang box but a double gang is recommended for more room to work
- Backside connection box dimensions: 1.6875"W x 2.625"H x 15/16"D
- Simple wire-nut connections

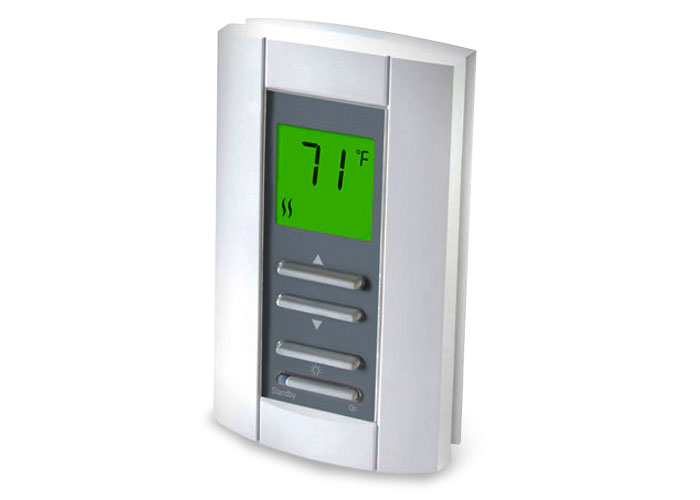

Manual Thermostat - AUBE TH114 Series
- 120V or 240V TH114 Series
- 15A resistive
- Max. load 120V = 1,800 Watts; 240V = 3,600 Watts
- Built-in Class A 5mA GFCI with GFCI test light
- Selectable 12-hour(°F) or 24-hour(°C) format
- Three temperature control modes - ambient, ambient with floor limit and floor
- ON/Standby switch enables thermostat shutdown at end of heating season for added security
- Advanced temperature control ensures total comfort by minimizing temperature variations
- Epoxy-soundproofed relay: Quiet operation
- 3 year manufacturers warranty
- Dimension: 4.9x2.8x0.9 inches (124x70x23mm)
- Made in China
Temperature Control
- Temperature range: +40/+104°F (+5/+40°C) in floor setpoint range (F mode)
- Accuracy: ±1.0°F/0.5°C
- F° or C° scale.
Easy Connections
- Fits single gang box but a double gang is recommended for more room to work
- Backside connection box dimensions: 1.6875"W x 2.625"H x 15/16"D
- Simple wire-nut connections
