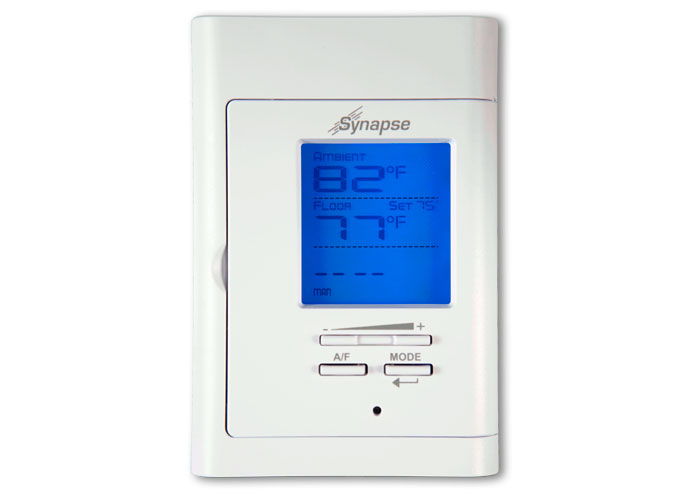

Synapse Radiant Floor Heating Thermostats

Programmable Thermostat

• Universal Voltage (SE72 Series):
  Suitable for 120V or 240V applications
• High amperage - up to 16 Amps resistive load
• Max. load 3,840 Watts (240V) and 1,920 Watts (120V)
• Integrated 5mA Class A GFCI and pilot light (test)
• Selectable °F or °C format
• Maximum comfort with two temperature control modes - ambient or floor
• Simplified one-touch programming - choose from list of pre-programmed settings
• Intelligent Anticipated start - feedback analysis ensures flor heating temperature is timely attained
• Lock option protects against unwanted tampering
• Programs and settings maintained indefinitely during power loss
• Time and date are only adjustments for power losses exceeding two hours
• Possibility to program up to 4 periods a day
• 3-year warranty
• Dimension: 4.9x3.4x1.0 inches
• Made in Canada

Temperature Control

• Temperature range: +34/+95°F (+1/+35°C)
• Accuracy: ±0.27°F/0.15°C
• 7 days, 4 time periods/day
• F° or C° scale.

Easy Connections

• Fits in a single gang box
• Wire-nut connectors - Included
• Floor sensor included (13ft/4m)
• Compatible with third party sensors
